Product Description
Features of electric motorcycle battery:
1. Lighter weight, smaller size.
2. High temperature performance.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Excellent large current discharge performance especially in startup and climbing.
7. Large capability and long life for all high power output applications.
8.Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature

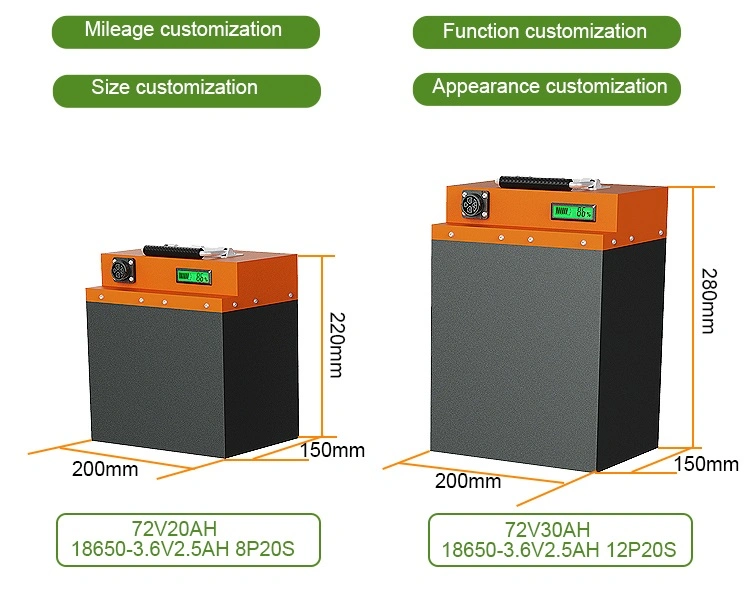

| Items | 72V 20AH | 72V 30AH |
| Voltage(V) | 72 | 72 |
| Capacity(Ah) | 20 | 30 |
| Continue power(W) | 2000 | 3000 |
| Max power(W) | 4000 | 5000 |
| Charge current(A) | 25 | 30 |
| Working Volt(V) | 60-84 | 60-84 |
| Weight(Kg) | 25 | 28 |
| Client Country | NZ | USA |
| Battery power | 1.44kwh | 2.16kwh |
| In operation since | 2020 | 2020 |

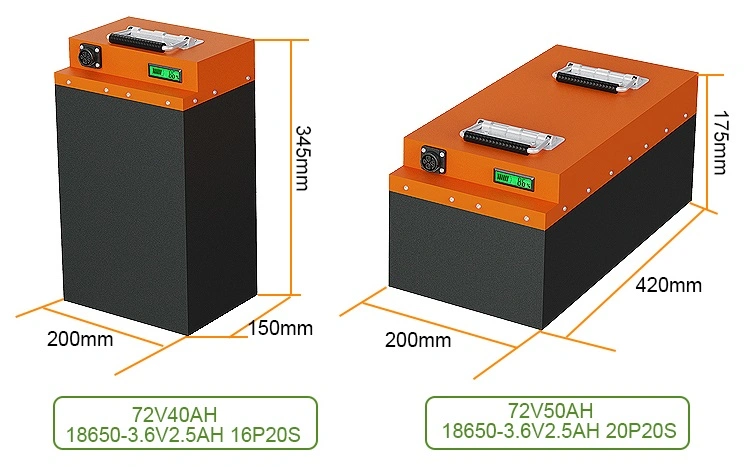

| Items | 72V 40AH | 72V 50AH |
| Voltage(V) | 72 | 72 |
| Capacity(Ah) | 40 | 50 |
| Continue power(W) | 3000 | 4000 |
| Max power(W) | 6000 | 6500 |
| Charge current(A) | 32 | 35 |
| Working Volt(V) | 60-84 | 60-84 |
| Weight(Kg) | 30 | 32 |
| Client Country | Korea | Austrain |
| Battery power | 2.88kwh | 3.6kwh |
| In operation since | 2021 | 2020 |
Our Advantages
BMS and Charger
Intelligent battery management system, all-round protection and supporting fuction customization like
Bluetooth/CAN
Production Details
From the battery cell to the battery pack,CTS controls every production link in stric accordance with the
ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the
battery,and presents the best products to every customer.

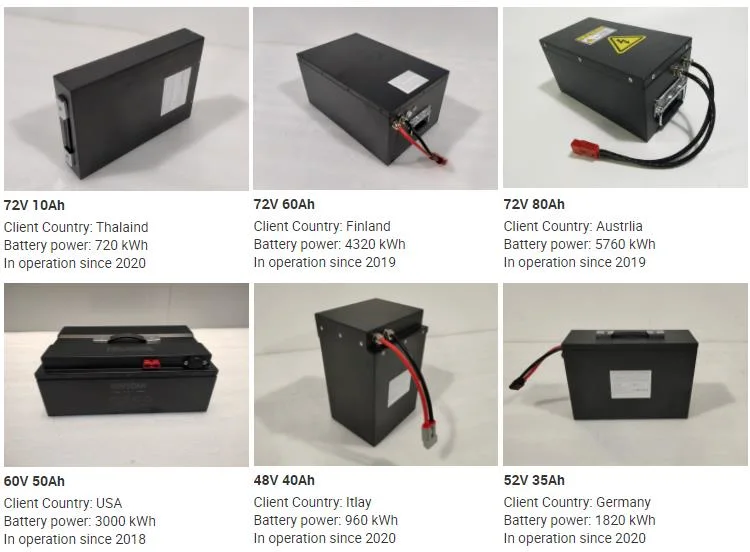

Application Cases
CTS lithium battery has a wider range of application and can meet 90% of electric and motorcycle
products in the market
Company Profile
Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries,
large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric
vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart,
fork lift, cleaning car , electric wheelchair, etc. We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized
automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best
quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join
together to promote the development of renewable energy and friendly environment.
